ARBOR SPONPL THERMOGULV 2420 STD

22X620X2420 N/F 4S STANDARD

Artikkelnummer: 42120184

Vannbåren varme i 17 mm rør.
For Uponors system
Gulvvarme gir et godt innemiljø.
Innetemperaturen kan senkes.
For tørre rom.

SPONPLATE THERMOGULV STANDARD 2420 N/F FAS 4S

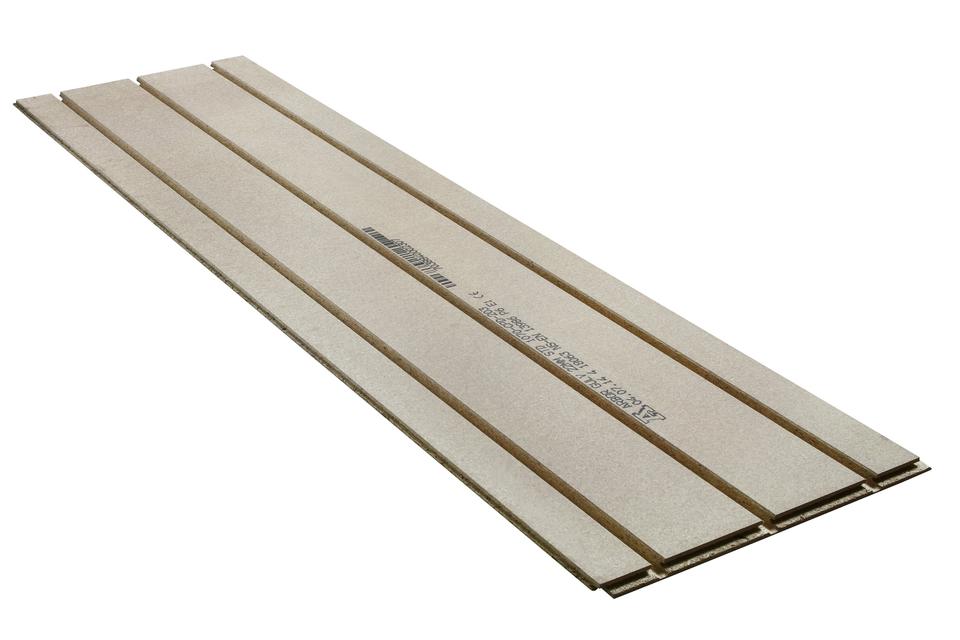

Arbor Thermogulv er en spesialplate som brukes der det skal legges 17 mm rør for vannbåren gulvvarme fra Uponor. Thermogulv Standard brukes som undergulv på trebjelkelag i tørre rom. Klimaklasse 1. Platen har profilert not og fjær på alle fire sider og 3 utfreste spor i platens overside for varmefordelingsplater. De utfreste sporene har en bredde på 19,8 mm og en dybde på 19,0 .Sporene er tilpasset en rørdiameter på 17 mm.

A4 Biogenic - global warming potential: 0.0 kg CO2 eq.
Bredde: 620.0 mm
C1 Fossil - global warming potential: 1.5642E-4 kg CO2 eq.
Lengde: 2420.0 mm
C1 - GWP-IOBC: 1.5642E-4 kg CO2 eq.
Tykkelse: 22.0 mm
C2 - GWP-IOBC: 0.19646 kg CO2 eq.
A4 Fossil - global warming potential: 0.5214 kg CO2 eq.
D - GWP-IOBC: -0.6072 kg CO2 eq.
PEFC-sertifisert
C3 Biogenic - global warming potential: 14.388 kg CO2 eq.
Overflatebeskyttelse synlig side: Ubehandlet
C2 Fossil - global warming potential: 0.19646 kg CO2 eq.
Tot A1 To A3 Biogenic - global warming potential: -14.388 kg CO2 eq.
A5 GWP Total - global warming potential: 0.231 kg CO2 eq.
Produktet omfattes av BREEAM-NOR V6 Hea 02
A4 - GWP-IOBC: 0.5214 kg CO2 eq.
C2 LULUC - global warming potential: 7.722E-5 kg CO2 eq.
Tot A1 To A3 GWP Total - global warming potential: -10.626 kg CO2 eq.
A5 LULUC - global warming potential: 3.146E-4 kg CO2 eq.
D Biogenic - global warming potential: 0.0 kg CO2 eq.
Overflatebeskyttelse bakside: Ubehandlet
A5 - GWP-IOBC: 0.2288 kg CO2 eq.
Tot A1 To A3 Fossil - global warming potential: 3.762 kg CO2 eq.
C4 LULUC - global warming potential: 4.642E-9 kg CO2 eq.
D GWP Total - global warming potential: -0.6094 kg CO2 eq.
C2 GWP Total - global warming potential: 0.19668 kg CO2 eq.
C3 GWP Total - global warming potential: 14.498 kg CO2 eq.
Kantfinish: Not og fjær, alle sider
C4 - GWP-IOBC: 1.3354E-5 kg CO2 eq.
C3 Fossil - global warming potential: 0.12034 kg CO2 eq.
A4 GWP Total - global warming potential: 0.5214 kg CO2 eq.
Dataset type: ProductEpd
C4 Fossil - global warming potential: 1.3354E-5 kg CO2 eq.
Biologisk holdbarhet i henhold til EN 13986: Bruksklasse 1 (over bakken, tildekket, tørre forhold)
D LULUC - global warming potential: -0.0021032 kg CO2 eq.
A5 Fossil - global warming potential: 0.2288 kg CO2 eq.
C1 LULUC - global warming potential: 8.448E-7 kg CO2 eq.
D Fossil - global warming potential: -0.6072 kg CO2 eq.
Tot A1 To A3 LULUC - global warming potential: 0.006028 kg CO2 eq.
Ytelseserklæring
A4 LULUC - global warming potential: 1.4586E-4 kg CO2 eq.
C3 LULUC - global warming potential: 4.246E-5 kg CO2 eq.
C1 GWP Total - global warming potential: 1.573E-4 kg CO2 eq.
C4 Biogenic - global warming potential: 0.0 kg CO2 eq.
Reference unit type: m3
A1 To A3 - GWP-IOBC: 3.762 kg CO2 eq.
C2 Biogenic - global warming potential: 0.0 kg CO2 eq.
C1 Biogenic - global warming potential: 0.0 kg CO2 eq.
Serienavn: Gulv for vannbåren varme
A5 Biogenic - global warming potential: 0.0 kg CO2 eq.
Andel av biobasert material i henhold til EN 16785: 100.0 %
C3 - GWP-IOBC: 0.12034 kg CO2 eq.
EN 15804:2012+A2:2019
C4 GWP Total - global warming potential: 1.3376E-5 kg CO2 eq.
Formaldehydemisjon iht. EN 717-2: E1
