TRESKRUE UTV SENK G3 6X90

NKT ESKE A100 TX30

Artikkelnummer: 43867244

Climate G3 overflate
Godkjent til bærende trekonstruksjoner
Freseribber på alle skruer fra og med 80mm
CE-merket
High Performance spiss

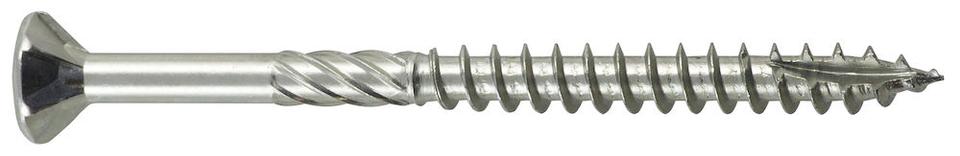

NKT utendørs universal treskrue med senkhode

Treskrue NKT SPUN+ Climate G3, C5, til utvendig bruk, med senkhode og TX spor. Til alle typer trevirke. Skruen er produsert i stål med overflatebehandling korrosjonsklasse C5. Skruens high preformance, spiss sørger for at skruen griper umiddelbart og reduserer risikoen for sprekkdannelser i treverket. Hodeformen forsterker en perfekt finish uten sprekker eller fliser. Freseribbene under hodet sikrer et pent sluttresulat. Skruer fra og med 80mm og lengre har et ekstra fresespor etter hovedgjengen, som bidrar til mindre motstand og lettere montering. CE-merket i hht. EN 14592:2008 + A1: 2099

Modell: SPUN+ G3
Skaftdiameter: 3.9 mm
Tot A1 To A3 Fossil - global warming potential: 4.656 kg CO2 eq.
Med fresespor under hodet
A1 - GWP-IOBC: 2.964 kg CO2 eq.
C3 Biogenic - global warming potential: 0.0222 kg CO2 eq.
C3 LULUC - global warming potential: 1.728E-5 kg CO2 eq.
Tot A1 To A3 LULUC - global warming potential: 0.01284 kg CO2 eq.
C1 LULUC - global warming potential: 4.428E-7 kg CO2 eq.
A3 LULUC - global warming potential: 0.002628 kg CO2 eq.
A4 GWP Total - global warming potential: 0.0 kg CO2 eq.
D - GWP-IOBC: 0.3996 kg CO2 eq.
A2 Biogenic - global warming potential: -2.676E-5 kg CO2 eq.
Gjengelengde: 45.0 mm
Tot A1 To A3 GWP Total - global warming potential: 4.62 kg CO2 eq.
Gjengediameter: 6.0 mm
Hodediameter: 11.4 mm
D Biogenic - global warming potential: -0.09312 kg CO2 eq.
C3 GWP Total - global warming potential: 0.04608 kg CO2 eq.
A5 - GWP-IOBC: 0.372 kg CO2 eq.
D LULUC - global warming potential: 9.576E-4 kg CO2 eq.
Forsenket
C2 LULUC - global warming potential: 3.048E-5 kg CO2 eq.
Gjengeområde: Delvis gjenget
C3 Fossil - global warming potential: 0.024 kg CO2 eq.
C2 Fossil - global warming potential: 0.006096 kg CO2 eq.
D Fossil - global warming potential: 0.3996 kg CO2 eq.
C4 LULUC - global warming potential: 6.372E-7 kg CO2 eq.
C3 - GWP-IOBC: 0.024 kg CO2 eq.
EN 15804:2012+A2:2019
A5 LULUC - global warming potential: 2.076E-4 kg CO2 eq.
Lengde: 90.0 mm
D GWP Total - global warming potential: 0.3072 kg CO2 eq.
A3 Fossil - global warming potential: 1.428 kg CO2 eq.
A2 LULUC - global warming potential: 1.992E-4 kg CO2 eq.
C2 Biogenic - global warming potential: 1.62E-5 kg CO2 eq.
Materiale: Stål
C1 - GWP-IOBC: 0.004332 kg CO2 eq.
C2 - GWP-IOBC: 0.006132 kg CO2 eq.
A3 - GWP-IOBC: 1.428 kg CO2 eq.
Dataset type: ProductEpd
C4 - GWP-IOBC: 0.0011136 kg CO2 eq.
Tot A1 To A3 Biogenic - global warming potential: -0.0528 kg CO2 eq.
C2 GWP Total - global warming potential: 0.006144 kg CO2 eq.
BREEAM-NOR v 6 Mat 02 egenerklæring
A4 LULUC - global warming potential: 0.0 kg CO2 eq.
A1 GWP Total - global warming potential: 2.964 kg CO2 eq.
A2 GWP Total - global warming potential: 0.282 kg CO2 eq.
C4 GWP Total - global warming potential: 0.0011136 kg CO2 eq.
A4 Fossil - global warming potential: 0.0 kg CO2 eq.
Overflatebeskyttelse: Andre
A3 Biogenic - global warming potential: -0.04884 kg CO2 eq.
Serienavn: NKT
A2 - GWP-IOBC: 0.282 kg CO2 eq.
C4 Biogenic - global warming potential: 4.992E-7 kg CO2 eq.
C4 Fossil - global warming potential: 0.0011124 kg CO2 eq.
A1 LULUC - global warming potential: 0.01008 kg CO2 eq.
C1 GWP Total - global warming potential: 0.004332 kg CO2 eq.
C1 Fossil - global warming potential: 0.00432 kg CO2 eq.
A4 Biogenic - global warming potential: 0.0 kg CO2 eq.
A1 To A3 - GWP-IOBC: 4.68 kg CO2 eq.
A5 Biogenic - global warming potential: 0.045 kg CO2 eq.
A5 GWP Total - global warming potential: 0.4176 kg CO2 eq.
A5 Fossil - global warming potential: 0.372 kg CO2 eq.
A2 Fossil - global warming potential: 0.282 kg CO2 eq.
Bit-størrelse: 30.0 mm
A1 Fossil - global warming potential: 2.952 kg CO2 eq.
A1 Biogenic - global warming potential: -0.00396 kg CO2 eq.
A3 GWP Total - global warming potential: 1.38 kg CO2 eq.
Hodeform: Flathode
Sportype: Torx
C1 Biogenic - global warming potential: 4.416E-7 kg CO2 eq.
